About this item

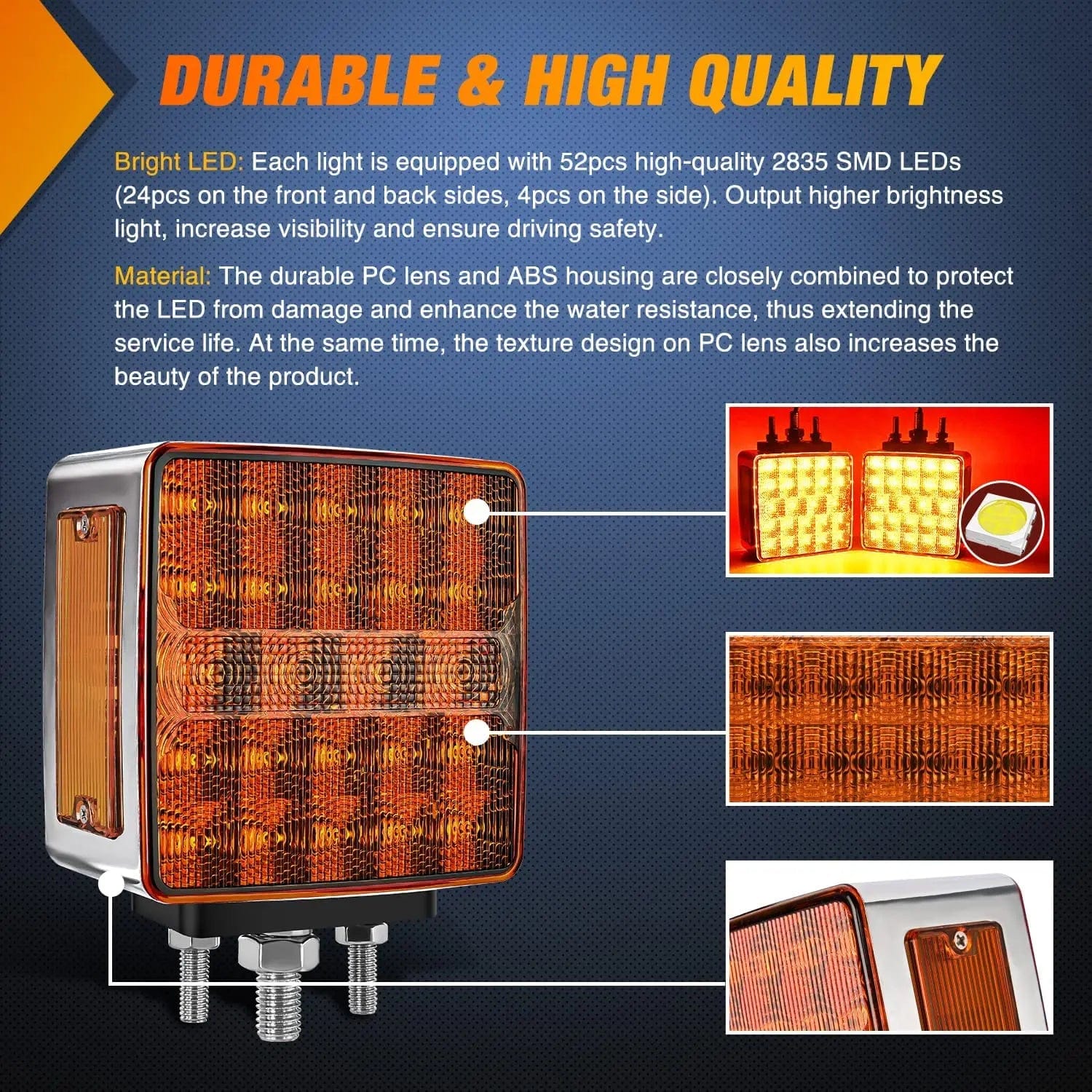

• High Quality LED: Each light is equipped with 52pcs high-quality 2835 SMD LEDs (24pcs on the front and rear sides, 4pcs on the side). Output higher brightness light, increase visibility and ensure driving safety.
• Durable Material: The durable PC lens and ABS housing are closely combined to protect the LED from damage and enhance the water resistance, thus extending the service life. At the same time, the texture design on PC lens also increases the beauty of the product.
• Convenient Installation Method: Each light comes with 3 studs for installation. If drilling is required, we also provide a black rubber gasket. The driver can use the rubber gasket to drill holes and then install the lights on the vehicle. Note: Professionals install is strongly recommended to avoid trouble.
• Wiring Guidance: White wire with "O" ring for ground, black wire for 50% brightness running light and side marker light, red wire for 100% brightness stop/brake and turn signals light.
• IP67 Waterproof: Front/ Rear/ Side lights are independent light body, will not affect each other. Glue is added to the outlet behind each light to prevent water from entering the light and damaging the LEDs. At the same time, ultrasonic technology is used to tightly combine each light and housing to effectively resist bad weather.
• Extensive Application: Universal fit for 12V/24V Heavy duty trucks like Peterbilt, Freightliner, International harvester, Kenworth, Western Star etc. They can be also used to DIY on other vehicles like trailers, tractors, truck.

Adopts a new appearance design, including 52pcs 2835 SMD led chips. Output bright red light and amber light. There are two modes to choose.

Specification:

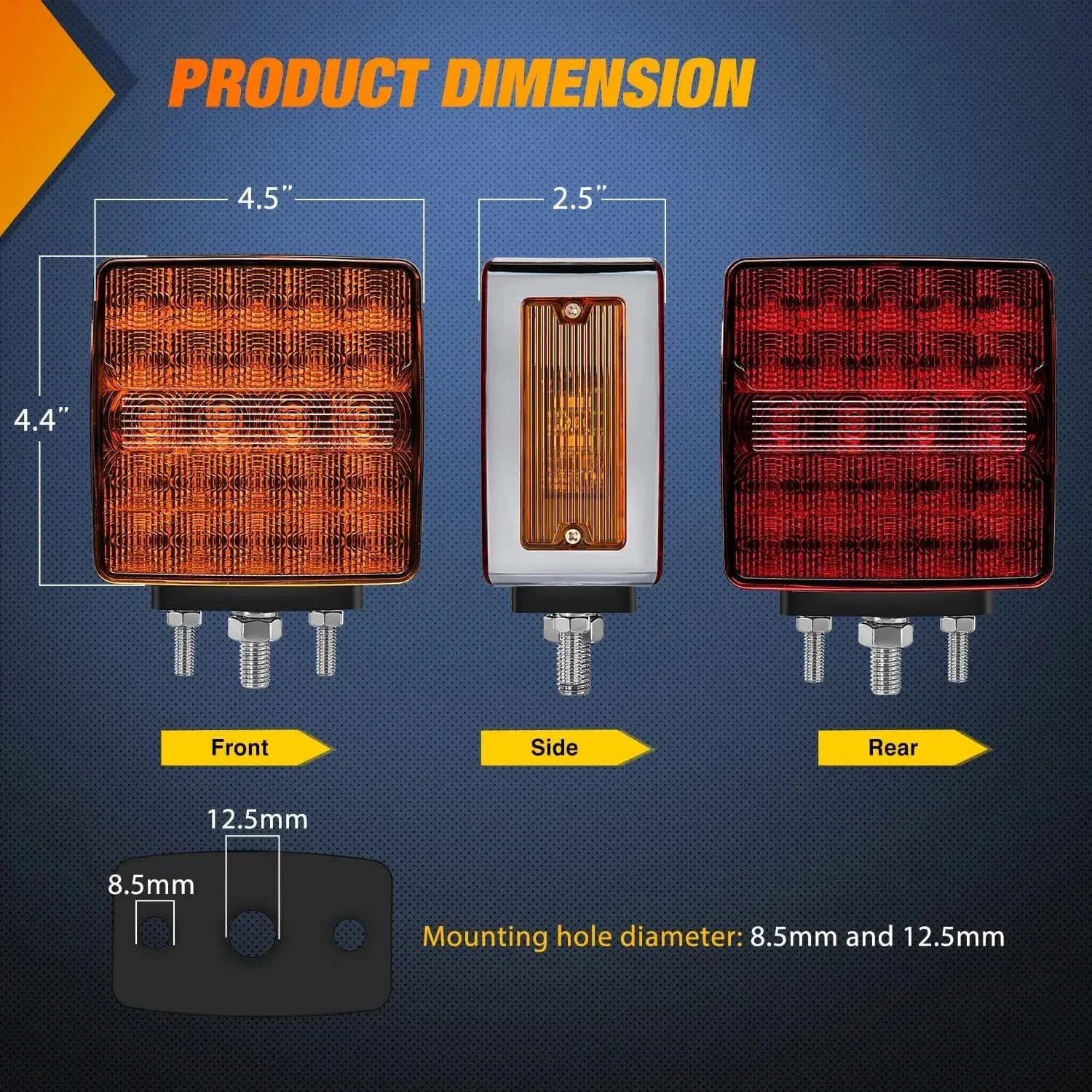

• Product size: 4.5” x 4.4” x 2.5”
• Mounting hole diameter: 8.5mm(left and right) and 12.5mm(middle)
• LED Quantity & Type: 52pcs 2835 SMD LED
• LED Color: Red and Amber
• Working Voltage: 12V /24V DC
• Waterproof Rate: IP67
• Wire length for installation: 8.66”

Wiring Guidance:

• White wire with "O" ring for ground.
• Black wire for 50% brightness running light and side marker light.
• Red wire for 100% brightness stop/brake and turn signals light.
• Note: The side marker light will light up in the low light mode and off in the high light mode.

Product Display

Excellent LED

Including 52pcs 2835 SMD LED, it has greater visibility and emits bright amber and red light. Always remind the vehicles behind to ensure driving safety.

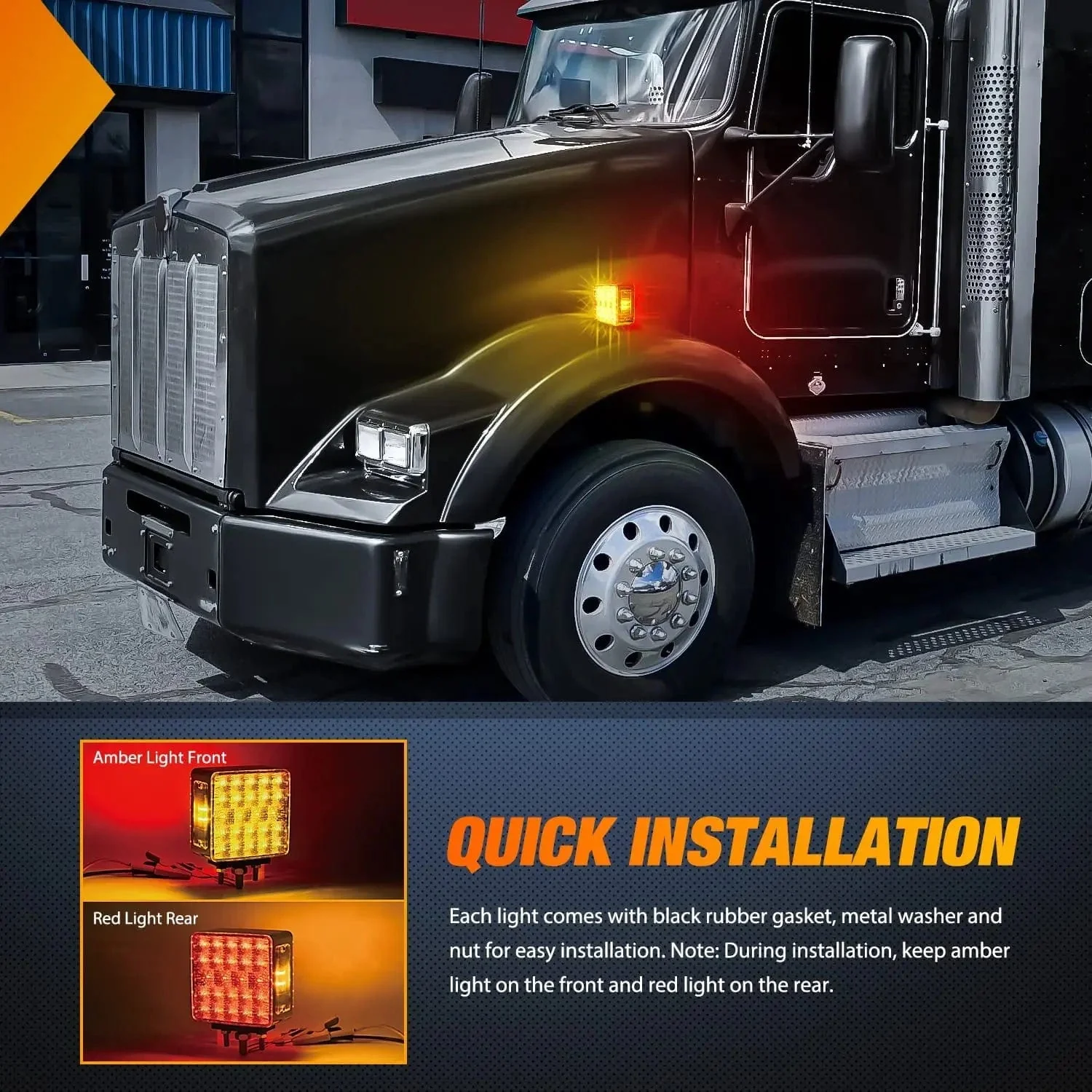

Convenient Installation

According to the size of the stud, we have equipped the corresponding size of gasket, washer and nut parts for each lamp stud. Just insert the stud into the appropriate hole position, then place the gasket washer and tighten the nut.

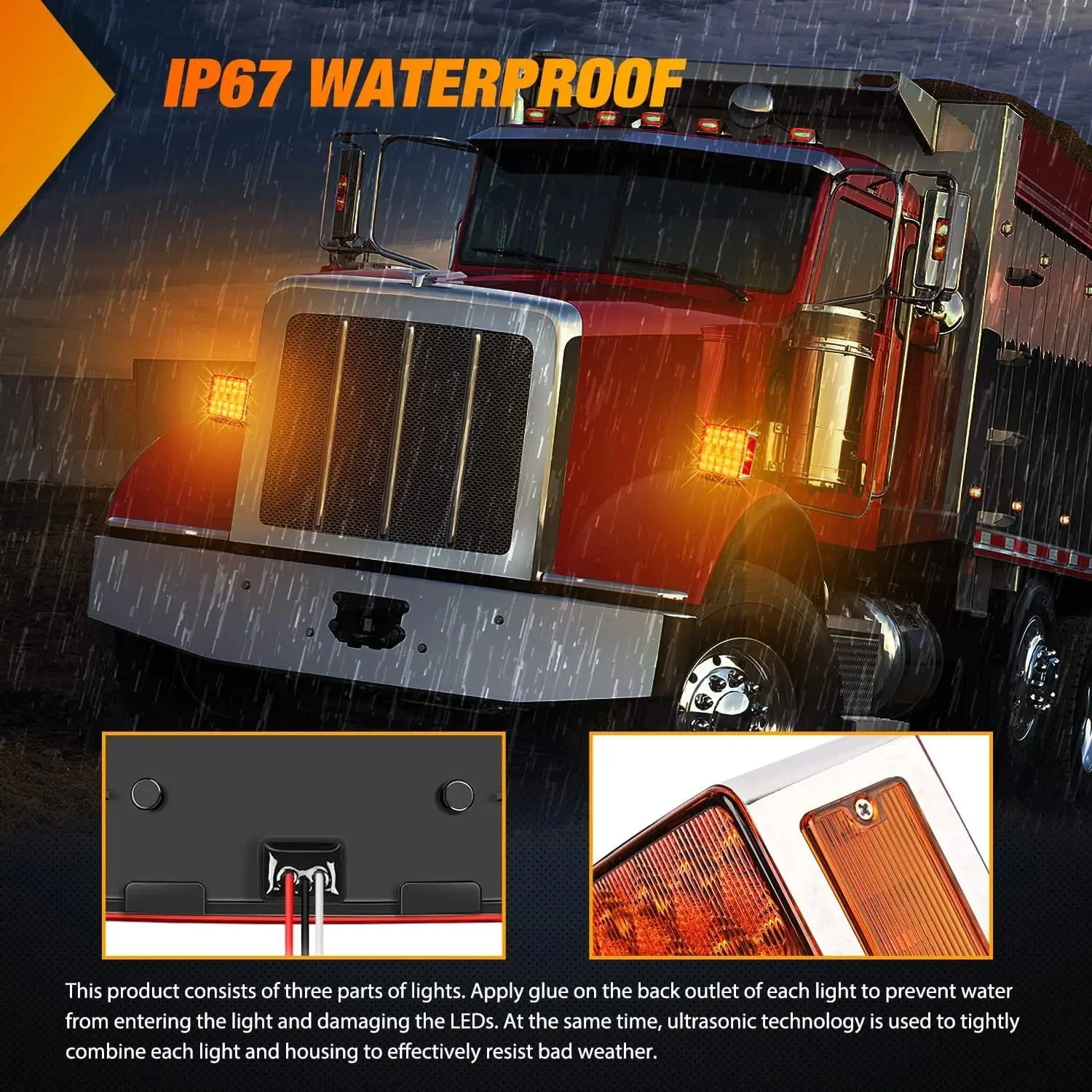

IP67 Waterproof

Interior waterproof and sealed design. Glue is added to the outlet of the front, rear and sides. At the same time, this three side lights are closely combined with ABS housing, greatly enhancing the waterproof performance.

Applications: Universal fit for 12V/24V Heavy duty trucks like Peterbilt, freightliner, Kenworth, Western Star etc. They can be also used to DIY on other vehicles like trailers, tractors, truck.
